The P0128 Toyota code in a vehicle refers to a specific issue related to the engine’s coolant temperature. When this code is triggered, it indicates that the engine is not reaching its optimal operating temperature within a specific time frame.
This can lead to decreased fuel efficiency, increased emissions, and potential engine damage if left unresolved. In this article, we will discuss the possible causes and solutions for the P0128 code in Toyota vehicles.
Contents
Understanding the P0128 Toyota Code
The P0128 code is an OBD-II diagnostic trouble code that is commonly found in Toyota vehicles. This code is specifically related to the coolant temperature being below the operating temperature set by the manufacturer.
The engine control module (ECM) continuously monitors the temperature of the engine coolant using a coolant temperature sensor. If the coolant temperature does not reach the desired level within a certain amount of time after starting the engine, the P0128 code will be triggered.
Possible Causes of the P0128 Code
There are several factors that can contribute to the activation of the P0128 code in a Toyota vehicle. It’s important to understand these possible causes in order to effectively diagnose and resolve the issue. Some of the common causes include:
Thermostat Stuck Open
A malfunctioning thermostat that remains open at all times can prevent the engine from reaching its proper operating temperature. The thermostat regulates the flow of coolant through the engine based on its temperature.
If it fails to close properly, it can result in the activation of the P0128 code. This can be caused by a faulty thermostat or a mechanical issue preventing it from closing.
Faulty Coolant Temperature Sensor
The coolant temperature sensor is responsible for providing accurate readings to the ECM. If the sensor is faulty or sending incorrect signals, it can trigger the P0128 code.
This can be caused by sensor failure, wiring issues, or a problem with the ECM’s interpretation of the sensor’s signals.
Low Coolant Level
Insufficient coolant in the system can prevent the engine from reaching its optimal temperature. This can be due to a coolant leak or improper maintenance.
Coolant plays a crucial role in absorbing and dissipating heat from the engine. If there is a low coolant level, the engine may not be able to reach the desired operating temperature, triggering the P0128 code.
Coolant Temperature Sensor Wiring Issues
Damaged, corroded, or loose wiring connections to the coolant temperature sensor can disrupt the signal transmission and lead to the P0128 code. Wiring issues can occur due to age, exposure to the elements, or improper installation.
It’s important to inspect the wiring connections and repair or replace any damaged or faulty wiring.
Engine Control Module (ECM) Failure
In some cases, a malfunctioning ECM can misinterpret the signals from the coolant temperature sensor, causing the P0128 code to be triggered. ECM failure can occur due to various reasons, such as electrical issues, software glitches, or component failure.
If the ECM is not accurately interpreting the sensor’s signals, it may not activate the appropriate systems to regulate the engine’s temperature.
Resolving the P0128 Code
To address the P0128 code in your Toyota vehicle, it is essential to identify and rectify the underlying cause. Here are some steps you can take to resolve the issue:
Check the Coolant Level

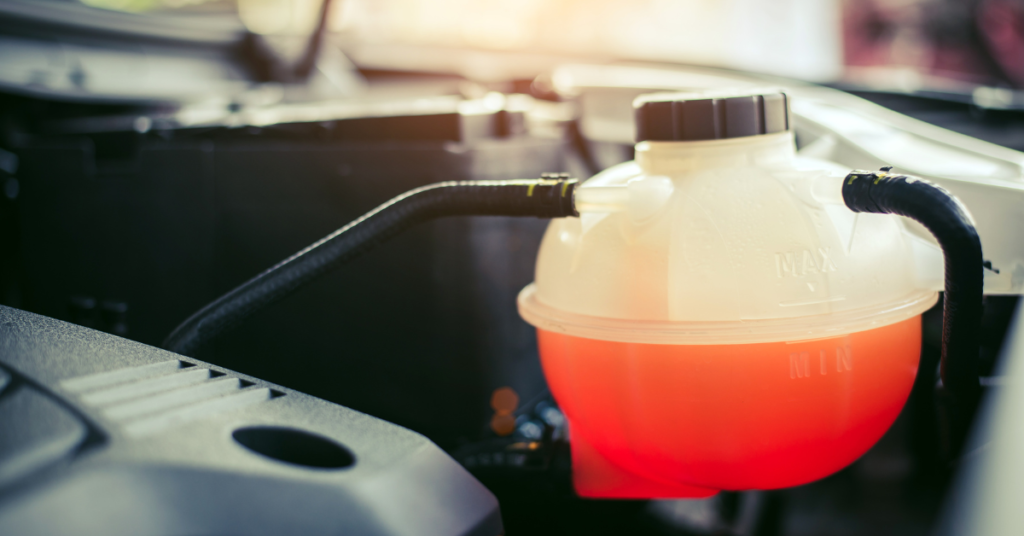

Start by inspecting the coolant level in your vehicle. Ensure that it is at the recommended level. If it is low, top it up with the appropriate coolant mixture. If you notice a significant drop in coolant level, there may be a leak that needs to be addressed.
Perform a thorough inspection of the cooling system for any signs of leaks or damage.
Inspect the Thermostat
A stuck-open thermostat can prevent the engine from reaching its operating temperature. Consider replacing the thermostat if it is found to be faulty. It’s important to choose a high-quality thermostat that is compatible with your specific Toyota model.
Follow the manufacturer’s instructions for installation and ensure all connections are secure.
Test the Coolant Temperature Sensor

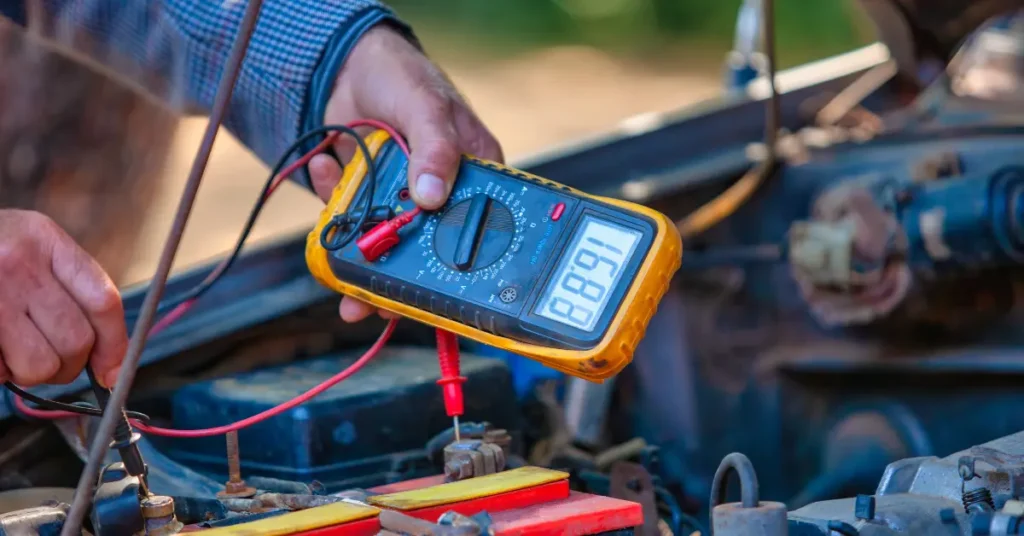

Using a multimeter, check the resistance of the coolant temperature sensor. Compare the readings with the manufacturer’s specifications.
If the sensor is faulty, replace it with a new one. It’s important to choose an OEM or high-quality aftermarket sensor to ensure accurate readings and compatibility.
Check the Wiring Connections
Inspect the wiring connections leading to the coolant temperature sensor. Look for signs of damage, corrosion, or loose connections.
Repair or replace any damaged wiring as necessary. It may be necessary to remove certain components or panels to access the wiring connections.
Ensure all connections are secure and properly insulated to prevent future issues.
Clear the Code
After addressing the underlying issue, clear the P0128 code using an OBD-II scanner. This will reset the ECM and turn off the Check Engine Light.
It’s important to ensure that the issue has been resolved before clearing the code. If the issue persists, the code may reappear, indicating that further diagnosis and repairs are needed.
If the P0128 code persists after attempting these steps, it is recommended to seek professional assistance from a qualified mechanic or Toyota dealership.
They will have the expertise and specialized diagnostic equipment to diagnose and resolve complex issues.
A professional can also guide any specific recalls, technical service bulletins, or known issues related to the P0128 code in your specific Toyota model.
Conclusion
The P0128 code in a Toyota vehicle is an indication that the engine is not reaching its optimal operating temperature. This can be caused by a variety of factors, including a stuck-open thermostat, faulty coolant temperature sensor, low coolant level, wiring issues, or ECM failure.
By identifying and addressing the underlying cause, you can resolve the P0128 code and ensure the efficient performance of your Toyota vehicle.
Regular maintenance, including coolant checks and thermostat inspections, can help prevent the recurrence of this code and maintain the longevity of your engine.
If you are unsure or uncomfortable with diagnosing and resolving the issue yourself, it is always best to seek professional assistance to ensure accurate and reliable repairs.
FAQ
Q: What does the P0128 code in a Toyota vehicle indicate?
The P0128 code indicates that the engine in a Toyota vehicle is not reaching its optimal operating temperature within a specific time frame.
Q: What are the possible causes of the P0128 code in a Toyota vehicle?
The possible causes of the P0128 code in a Toyota vehicle include a thermostat stuck open, faulty coolant temperature sensor, low coolant level, and coolant temperature sensor wiring issues.
Q: How can I resolve the P0128 code in my Toyota vehicle?
To resolve the P0128 code, you can check the coolant level, inspect the thermostat, test the coolant temperature sensor, check the wiring connections, and clear the code using an OBD-II scanner.
Q: What should I do if the P0128 code persists after attempting the suggested steps?
If the P0128 code persists, it is recommended to seek professional assistance from a qualified mechanic or Toyota dealership for further diagnosis and repairs.
